Could a Nuclear-Powered Cargo Ship Transit the Suez Canal?

core power

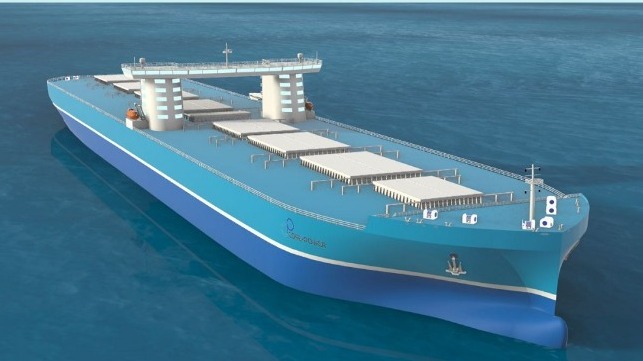

Illustration courtesy Core Power

Published Jul 18, 2021 2:51 PM by Harry Valentine

Ongoing research into small-scale nuclear energy conversion has advanced to greatly increase safety with the development of sodium-cooled reactors and molten salt nuclear technology. While the technology is potentially feasible, there remains the need to negotiate to gain passage through several channels and ports internationally.

Introduction

The history of nuclear ship propulsion dates back to the mid-1950’s when the United States developed the submarine Nautilus. By late 1959, the Soviet Union answered the nuclear propulsion challenge with the launching of the icebreaker Lenin. Since that time, all nuclear-powered maritime vessels have been directly or indirectly connected to a national military or navy. Recent advances in nuclear technology offers possibility for commercial propulsive application.

Environmental concerns about maritime sector greenhouse gas emissions have prompted research and development into a multitude of alternative fuels and ship propulsion technologies. While alternative fuels such as LPG and methanol fuels sustain the operation of internal combustion engines, other fuels such as hydrogen and reprocessed ammonia sustain operation of fuel cells that produce electricity. Some versions of new generation small-scale nuclear power resolve the problem of cooling reactors with high-pressure water or high-pressure helium gas. Widespread acceptance of nuclear powered commercial ships depends on assuring populations of the greater safety of contemporary nuclear technology.

Nuclear Concerns

Nuclear incidents such as Fukushima (Japan), Three Mile Island (United States) and Chernobyl (USSR – Russia) and the stockpile of semi-spent nuclear fuel rods have elicited much public opposition to expanding nuclear power. While traditional nuclear reactors are cooled by water, helium gas pumped at high pressure cools some modern high-temperature reactors. Structural failures in high-pressure water-cooled or gas-cooled reactors have catastrophic implications. Recent developments resolve the pressure problem by cooling the reactor with a liquid metal that melts just under 210 deg F (98 deg C) and remains liquid at 1470 deg F (800 deg C) while at atmospheric pressure.

Another unique nuclear technology involves adding nuclear material into molten salt, which also resolves concerns over cooling nuclear reactors with high-pressure steam or gas. Molten salt nuclear material becomes liquid at around 750 deg F (400 deg C) and is solid below that temperature. Some developing nuclear technology including variations of molten salt is able to reprocess semi-spent nuclear fuel. Any rupture of the molten salt nuclear reactor would result in a drop in temperature and solidification of the molten salt nuclear fuel, enhancing its safety and suitability for commercial ship propulsion.

Energy Conversion Efficiency

Green hydrogen production requires electric power to achieve electrolysis, splitting hydrogen from oxygen at 65 percent to 75 percent conversion efficiency. Solid-oxide fuel cells convert hydrogen to electric power at 55 percent to 65 percent efficiency, with overall energy conversion efficiency from electricity back to electricity of about 45 percent to 50 percent. A nuclear power plant can produce electric power at 36 percent efficiency from fuel rod to transmission line, yielding 18 percent peak overall efficiency from power station via hydrogen and fuel cell to ship propeller. Nuclear energy can indirectly be used to produce ammonia and also methanol, with losses in energy conversion efficiency.

Direct nuclear power generation aboard a ship bypasses the efficiency loses of producing any of hydrogen, ammonia or methanol. While low-grade exhaust heat from land-based nuclear power station can contribute to producing methanol, energy is required to cultivate and harvest the crops required for methanol production. Directly using nuclear power for commercial ship propulsion allows arable land to be used for food production to feed human populations, instead of cultivating crops to produce bio-fuel. Over the service life of a ship, there would be potential for a nuclear powered ship to be cost competitive against other zero-carbon technologies.

Ports and Suez Canal

Public pressure and concerns for safety have prompted many coastal cities internationally to prohibit nuclear powered vessels from entering ports. At the present time, the Suez Canal Authority discourages nuclear powered vessels from sailing through the Suez Canal. Only under very rare occasions and courtesy of intergovernmental negotiation has the Suez Canal Authority allowed a nuclear powered vessel to transit through the canal. The threat of a breakdown occurring aboard a nuclear power ship while sailing through the canal would cause closure of the canal and massive loss of revenue for the Canal Authority.

Towed Vessels

The Suez Canal Authority allows towed vessels to transit through the canal. There is usually some advanced notification and negotiation when a smaller vessel such as a tug tows a large vessel through the canal. On occasion, a large vessel has towed a much smaller vessel through the canal and such precedent provides a possible basis for future discussion and negotiation with the Suez Canal Authority. A future possibility would involve a small vessel generating electric power while being towed by a much larger vessel pulling a towing cable also that carries accompanying electric power cables.

A molten salt nuclear reactor could be deactivated prior to a nuclear-powered ship arriving at the entrances of Suez Canal, and a towed electric generator vessel would attach to each deactivated nuclear ship via towing cable and interconnecting power cables, providing propulsive energy and navigation control to the large ship. Electric power from the small towed vessel would sustain propulsion and navigation control for the large vessel. While such operation is technically possible, it has never operated through the Suez Canal and would require a policy directive from the Suez Canal Authority.

On-Board Battery Power

There is potential for battery technology to sustain low-speed propulsion and ship navigation along the 120-mile length of the Suez Canal. The same batteries would provide short distance propulsion and navigation control when nuclear powered commercial ships arrive at and depart from ports that require de-activation of molten salt reactors aboard each nuclear commercial ship. Alternatively, port-based battery vessels would connect via towing cable and interconnecting power cables to provide propulsive power and navigation to large nuclear powered commercial ships that arrive and depart with de-activated molten salt reactors.

Port authorities on several nations and the Suez Canal Authority would need to consider the future possibility of nuclear powered commercial ships arriving at port and asking to transit through the Suez Canal. Both the port authorities and Suez Canal Authority would need to be assured of the relative safety of molten salt nuclear technology compared to earlier nuclear technology. All authorities would likely face public pressure to assure safety at ports and along the Suez Canal. Shipping companies considering future nuclear powered super-size container ships will need to negotiate with Suez Canal Authority and port authorities internationally.

Conclusions

Plans are underway in South Korea to develop a commercial ship powered by a molten salt nuclear reactor. It is one of the technology options as the international shipping industry transitions to low-carbon emission and zero-carbon emissions propulsion. There will likely be future discussion with the Suez Canal Authority in regard to nuclear powered commercial ships needing transit between the Mediterranean Sea and the Red Sea, also future discussion with port authorities internationally.

The opinions expressed herein are the author's and not necessarily those of The Maritime Executive.
