Investigation Finds Unintended Risks with ECDIS Navigation

Published Jun 26, 2019 9:24 PM by The Maritime Executive

The newly-released Australian Transport Safety Bureau (ATSB) investigation of the grounding of the Australian Border Force Cutter (ABFC) Roebuck Bay on Henry Reef has revealed underlying safety issues with the effectiveness of ECDIS type-specific training, ECDIS software updates and the use of a single point feature to represent relatively large physical features on electronic navigational charts.

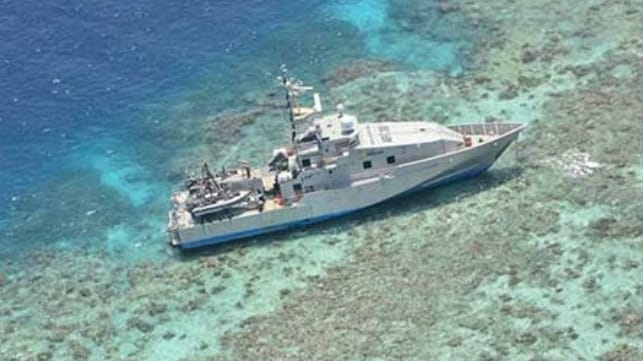

On September 30, 2017, shortly after midnight, the ABFC Roebuck Bay grounded on Henry Reef in the Great Barrier Reef, Queensland. The cutter was on a passage from Saibai Island in the Torres Strait Islands archipelago bound for Lizard Island, located about 71 nautical miles south-east of Cape Melville. The cutter sustained substantial damage to the keel, stabilizer fins and propellers, with hull breaches near the storage void and tank compartment spaces. There were no reported injuries or oil pollution.

While planning the passage from Saibai Island to Lizard Island, ABFC Roebuck Bay’s previously used passage plan was amended, with its route inadvertently plotted over Henry Reef. The ship’s ECDIS identified the reef as a danger to the planned route, however, the crew did not identify the danger either visually or by using ECDIS. The vessel continued on the amended route and grounded on Henry Reef just after midnight.

The ATSB found the crew’s ability to check the amended route was limited as their training was not effective in preparing them for the operational use of their on board ECDIS.

The ATSB says the investigation highlights that the safe and effective use of ECDIS as the primary means of navigation depends on operators being thoroughly familiar with the operation, functionality, capabilities and limitations of the specific equipment in use on board their vessel.

“ECDIS type-specific training needs to be designed, delivered and undertaken so operators have the required knowledge to confidently operate ECDIS as intended by the manufacturer,” ATSB Chief Commissioner, Greg Hood said.

The ATSB also found the vessel’s ECDIS was not updated to the latest International Hydrographic Organization (IHO) standards and lacked the enhanced safety features of a new presentation library of symbology.

The investigation involved interviews with Australian Border Force officers, crew and shore staff and hydrographers from the Australian Hydrographic Service and the ECDIS manufacturer. Extensive ECDIS analysis was also carried out, as was various ECDIS simulations and testing.

“As a result of the investigation, the ATSB considers the use of point features in electronic navigational charts to represent areas of relatively significant size on the earth’s surface is likely to increase the risk of the hazard posed by such features being misinterpreted and potentially reduce the effectiveness of ECDIS safety checking functions,” Hood said. “While this did not specifically contribute to the grounding of Roebuck Bay, the investigation has shown that the implementation of ECDIS has introduced some unintended risks to marine navigation.”

Hood says operating crew need to be aware that navigating with ECDIS is fundamentally different from navigation with paper charts. “By allowing operators to view and change an electronic navigational chart to a larger complication scale, ECDIS can make single point features representing rocks, wrecks and other obstructions appear progressively smaller as the scale is changed, creating the impression it is clear of a ship’s route or further away than what it actually is.”

The report is available here.
